Shifter and AC knob LED convesion

9215 Views 14 Replies 8 Participants Last post by Toasted, Aug 4, 2012

2009LEDXB

Discussion Starter · Oct 18, 2009

24

Before we start i want to say that if anthing happens to your car i am not to be held liable for what u have messed up
Tools
Electrical Tape
Wire strippers / cutters
Both types of screwdriver
five or six wire connectors
4 bright leds any color i chose blue
hot glue gun
drill with small bit

BEFORE WE START TURN ALL OF THE KNOBS ALL THE WAY TO THE LEFT SIDE SO IT WILL BE EASY TO PUT BACK TOGETHER

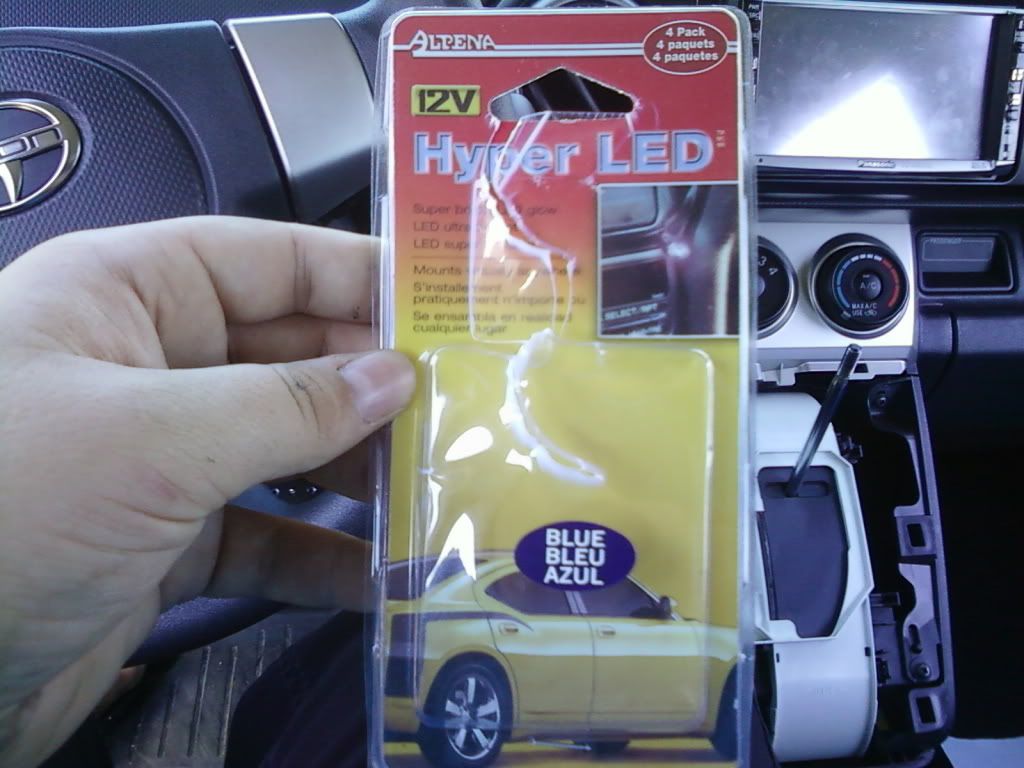

here are the LEDs i bought at Advanced auto parts for around ten bucks
http://

Here is the disassembly of the dash
http://

http://

http://

http://

http://

http://

http://

http://

This is the shifter LED swap
http://

This is what the oem bulb looks like that u will remove and cut the wires
http://

Then just fine out which side is the positive and which is the negative and connect the Led power cords
http://

Then wedge the LED in the hole the light bulb was in i used a little electrical tape to make a tight fit.

Now for the ac knob swap.
http://

Here are the wire harness connectors that u need to press in the tabs and remove
http://

Now to dicect the knobs this is not hard just take your time.
The two outside knobs will take the same steps but the middle knob is different
the first part is for the two outside knobs
http://

Each knob has two sets of clips that will need to be popped off
This is the first set
http://

This is the second set
http://

This is the inside of the knob
http://

remove the piece that is the middle button of the knob it will pop off with a little wiggal
http://

The oem bulbs twist out and here is them removed from each of the knobs
http://

Were the oem light was is were i put the new led and ran all of the wire connected to the led through the hole were the bulb was
the first piece u took off is were the hole needs to be drilled they only need to be drilled on the two outside knobs the middle knob is already open so no hole is needed
http://

run the wires through the drilled holes and and put all of the knobs back together
http://

i wired the three leds in the knobs back to the led that is under the shifter because the lights in the knobs run off of metal plates so i wired them all into the positive and negative green wires from the light on the shifter
http://

then put your dash back together and your good to go here is how it turned out
http://

If u have any questions don't hesitate to ask.
Hope u like it

See less See more
